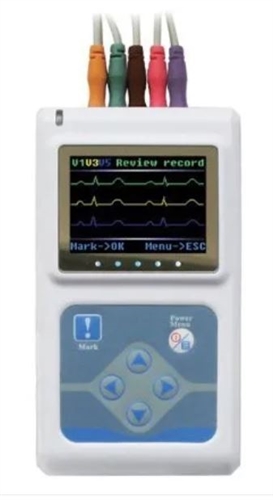

The TLC5000 Holter ECG System is an affordable device which utilizes the international standard 12 lead system, records ECG waves continuously for up to 24hrs and allows for analysis with PC software. It is suitable for trained medical professionals for personal use and in hospital and community medical facilities.

TLC5000 Specifications

Quick and accurate analyzing system

Special editing system of R point

Perfect analysis function of ST segment

The analysis function of T wave of all channels and T wave trend graph

Review of the ECG trend graph

The analysis system of HR variability, providing the regular SDNN, SDANN, RMSSD, LF, HF, time domain, and frequency domain

QT analysis and QT trend graph

Acquire pacing ECG directly without separate channel; Also have the functions of VCG, LPG, high frequency ECG, FCG.

Specifications Holter Recorder

12 Channel Synchronized ECG Acquisition

Small ECG recorder with OLED color screen which can display real time ECG waveform and review storage data.

Capacity is up to 2G

Selectable sampling rate, 200, 500, 1000 sampling/sec

Sampling accuracy: 12 bit

Build-in FLASH storage media, which can refrain the flash card fromdamageby repeatedly inserted and pull out

USB interface

The features of software

� Quick and accurate analysis system.

� With 12 leads synchro analysis , QRS search can be more exactly.

� There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms.

� Optional main channel.

� Agile and exact "Atrial Fibrillation" analysis.

� The function of pacing analysis could analyse all pacemakers.

� Many pacine modules have been added.

� Any period of single lead or 12-leads ECG can be reviewed at any time with the function of fast waveform review and analysis.

� The types of the analysis system of HR variability include five minutes of short ECG and one hour or 24-hour of long ECG.

� Print report expediently.

� Perfect function of case management.

� With the function of ST segment analysis and general load of the disorder of the heart muscle, the physician can judge a disease or disorder of the heart muscle generally.

� "Sleep breath pause syndrome analysis", the physician could print sleep asphyxia analysis report and diagnose.

� "HRT" analysis, when the adjustable function is natural, this transitory change will be represented by the form of HRT immediately.

� "T Wave alternation" analysis is a important index on judging and preventing Arrhythmia.

� The report has more reference value with the functions of VCG, VLP, TVCG and QTD analysis.

Certification

CE and FDA

• Standard
  Number of channels: 12 channels;
  Sampling rate:10000Hz;
  Sampling accuracy:12bit;
  Recording time : 24 h;
  Power: 2 batteries in size 5;
  Interface: USB2.0;
  Scale voltage:1mV�5%;
  Standard Sensitivity:10mm/mV�5%;
  Noise level:=30�V;
  CMRR:=60dB;
  Feathers of low frequency : Time constant>3.2s;
  Scan speed:25mm/s�5%;
  Enduring polarization voltage:�300mV;
  Least measure signal : 50 �V p-p;
  Product safety type : Type B (Internally powered);
  Size:111mm(L)*60mm(W)*25mm(H);
  Net Weight: 102g (Without battery).





Warranty

Hardware: This guarantees that the hardware will be free of defects in material and workmanship under normal use, or it will be replaced by Southeastern Medical Supply or Southeastern Medical Supply�s designated representative.

Software: This guarantees that the physical media are free from defects, or they will be replaced by Southeastern Medical Supply. Also, the warranty guarantees that the software generally conforms to the published specifications for the product. Software is provided "as is," and in no event does Southeastern Medical Supply warrant that the software can be easily operated by the user.

Return Policy

� Because this is a Class II medical device, like the other devices on our site, there is no trial period for this product purchased from Southeastern Medical Supply. Defective hardware will be replaced by Southeastern Medical Supply (or its designated representative); or, upon verification that the hardware is defective, a refund may be applied. Unopened products returned to Southeastern Medical Supply are subject to a 20% restocking fee.

� Defective software media will be replaced or the customer will be directed to a download location to obtain the software. A customer who is unable to operate the software is not eligible for a refund.
